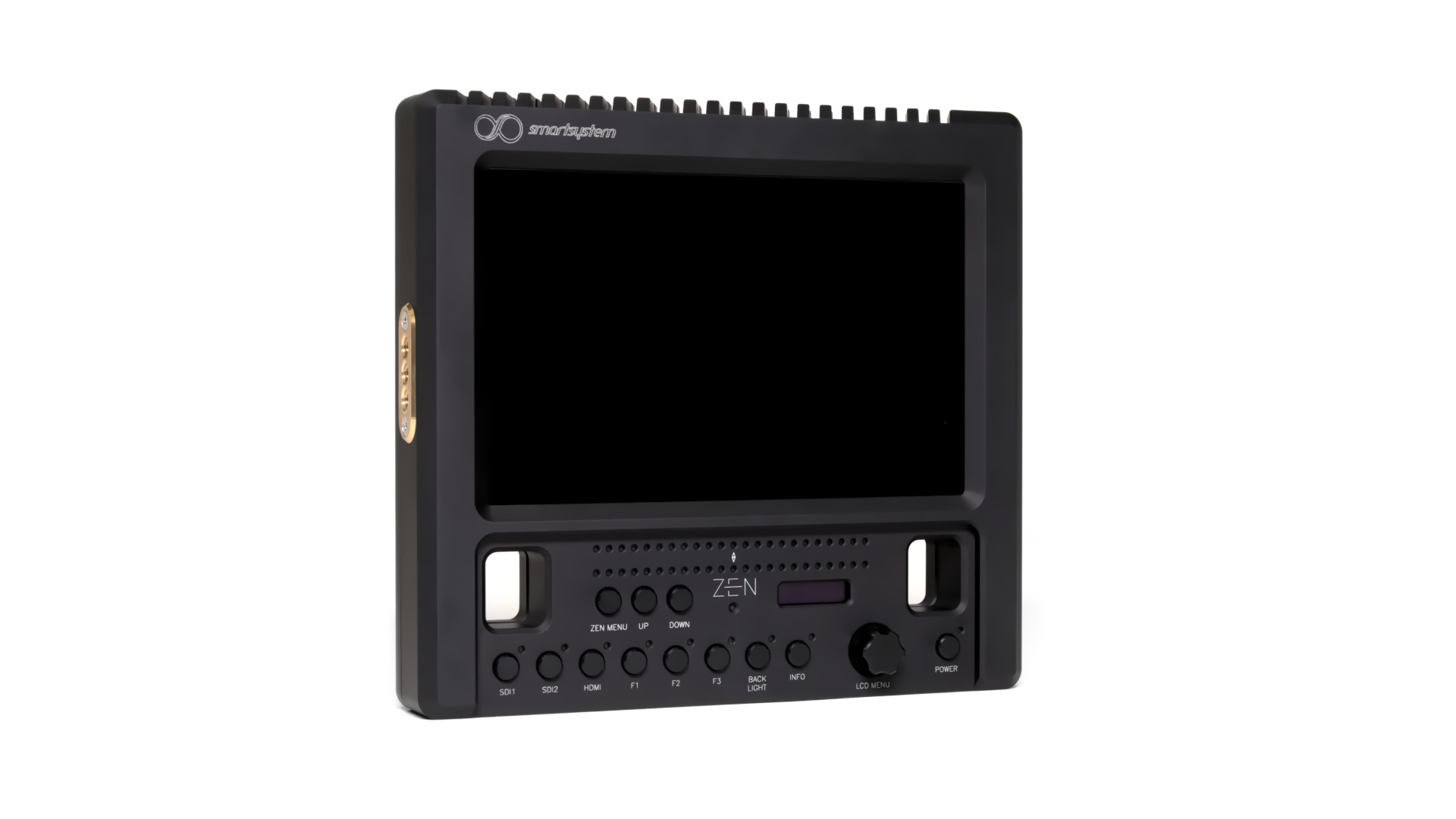

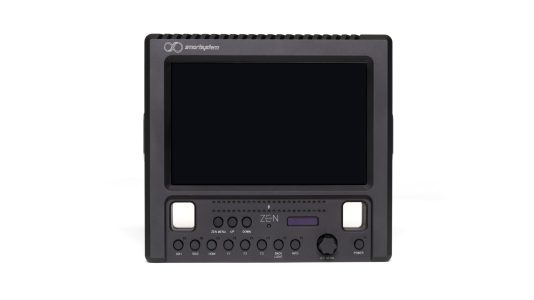

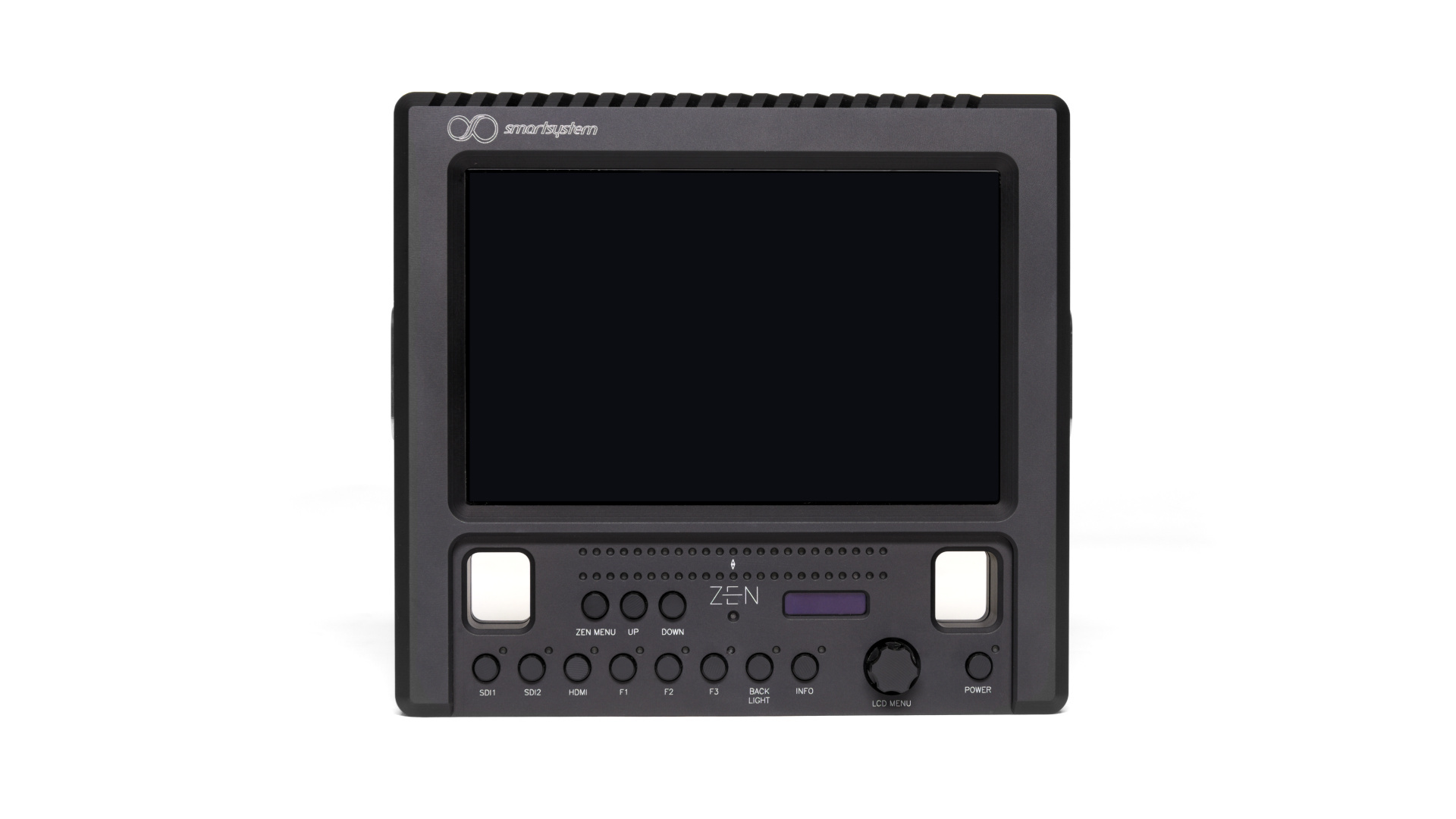

SmartCAM SM7-3K-Z

Designed to meet all the physical requirements
by modern stabilizers

External case completely milled from solid aluminum,
shot-peened and hard anodized to ensure
reliability and endurance

Completely fanless thanks
to exclusive Dynamic Cooling System

Equipped with multi-axis ZEN Digital Level indicator

Click Here to know more about ZEN

Thanks to the possibility to apply logs to Rec 709 conversion LUTs, including Log-C, C-log,
S-log2, S-log3, V-log, J-log1, RedLogFilm, is it possible to import your own
3DLUTs via USB stick, for a complete control over the image

LUTs on board

Clearly visible under Sunlight

Equipped with a 7" Hyper Bright LCD panel with an outstanding brightness
of 3000 nits and a native resolution of 1920 x 1200 with a contrast ratio of 1200:1

OnScreen TALLY

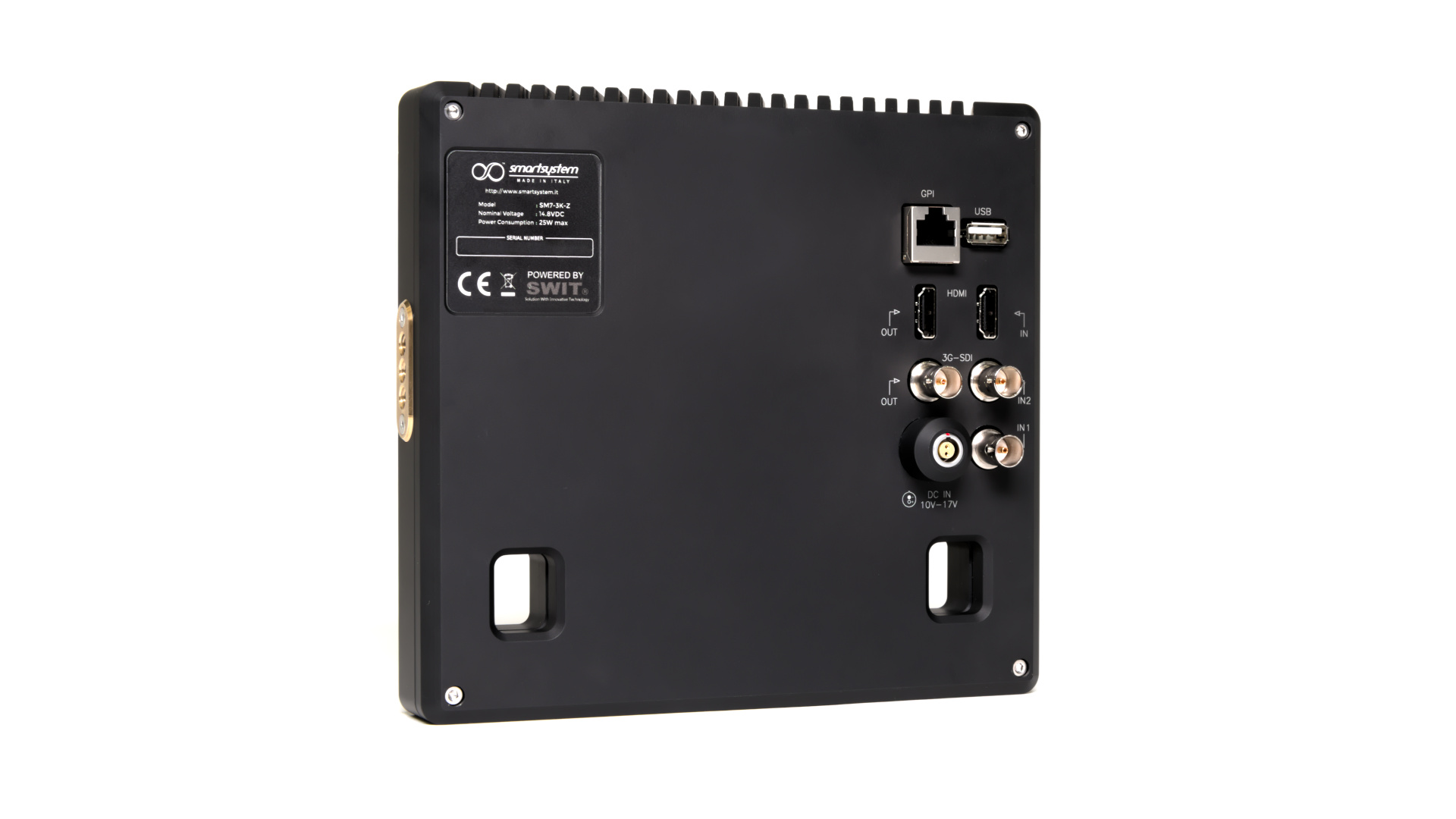

The presence of the General Purpose Input GPI Port on the rear of the monitor,
gives to the user the possibility to visualize directy on-screen the TALLY signal

3G-SDI and 4K HDMI Support

2x 2K/3G/HD/SD-SDI inputs
2x 2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
1x HDMI 2.0 (4K60p) input
1x HDMI 2.0 (4K60p) loop output

Data Ports

1x General Purpose Input (GPI) based on RS485

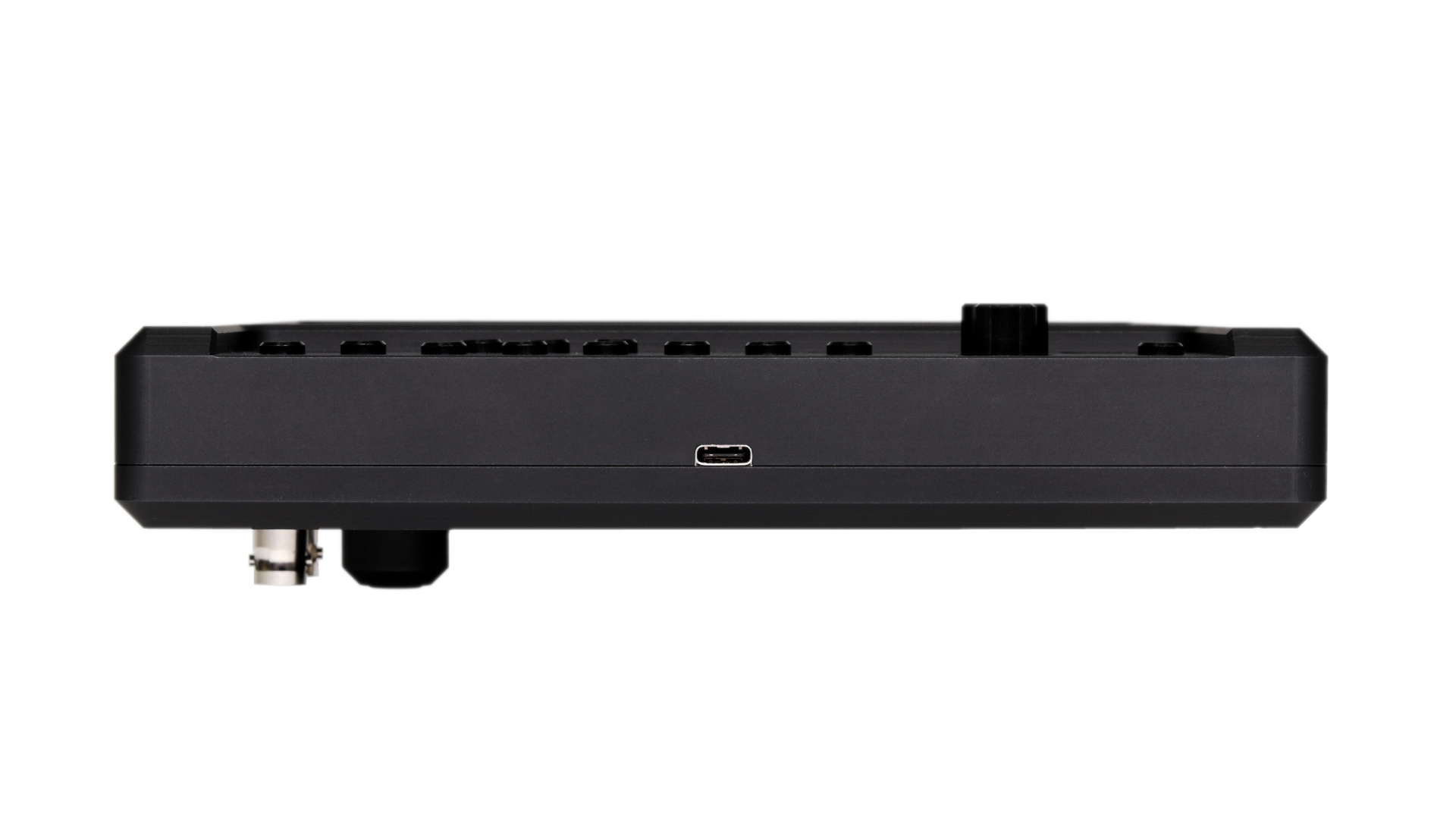

1x USB port for firmware update or LUTs uploads

Power Options

1x 2poles Push-Pull connector with a voltage range from 10V to 17V
1x Vlock or ThreeStuds Battery plate (optional)

4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SDI INPUT

Video formats

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50）
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI INPUT

On board Helpers

R/G/B Only

4.3 - 13:9 - 1.85 : 1 - 2.35 : 1

Over Exposure Zebra

False Color

Vertical Mirror

Red/Blue Peaking

Horizontal Mirror

Dimensions

152.4mm / 6.0"

DC Voltage Range
10VDC - 17VDC

178mm / 7.0"

32mm / 1.26"

96.5mm / 3.8"

Additional Technical Specifications

193mm / 7.6"

Weight
1.5kg / 3.3lbs

Power Consumption
<= 30W

Working Temperature
-10°C～+45°C

Working humidity
10%～80%

Are you searching a monitor with the same video capabilities
but without a digital level indicator
and with a smaller form factor?

Check it out the

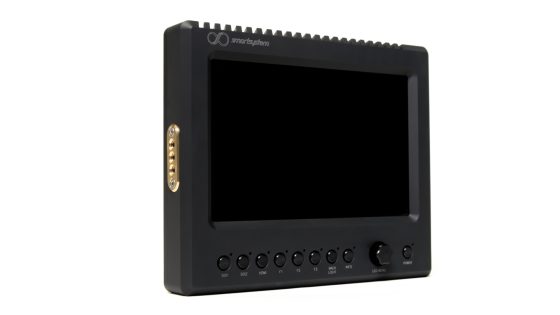

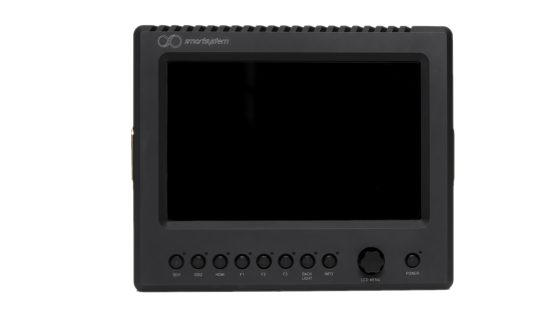

SmartCAM SM7-3K

SmartCAM Monitor SM7-3K-Z

Name: SmartCAM Monitor SM7-3K-Z
SKU: 000007485
Price: 2929.95 EUR
Availability: InStock

€ 3,574.54

The price is comprehensive of your country VAT, if applicable. Customs fees excluded.

SKU: 000007485
EAN: 8051411191568

7″ 3G-SDI Hyper Bright monitor with 3000 nits specifically engineered to suit all the physical requirements by modern stabilizers.
Case completely milled from solid aluminum, shot-peened and hard anodized

Equipped with ZEN Digital multi-axis level indicator

In stock (can be backordered)

SmartCAM Monitor SM7-3K-Z
