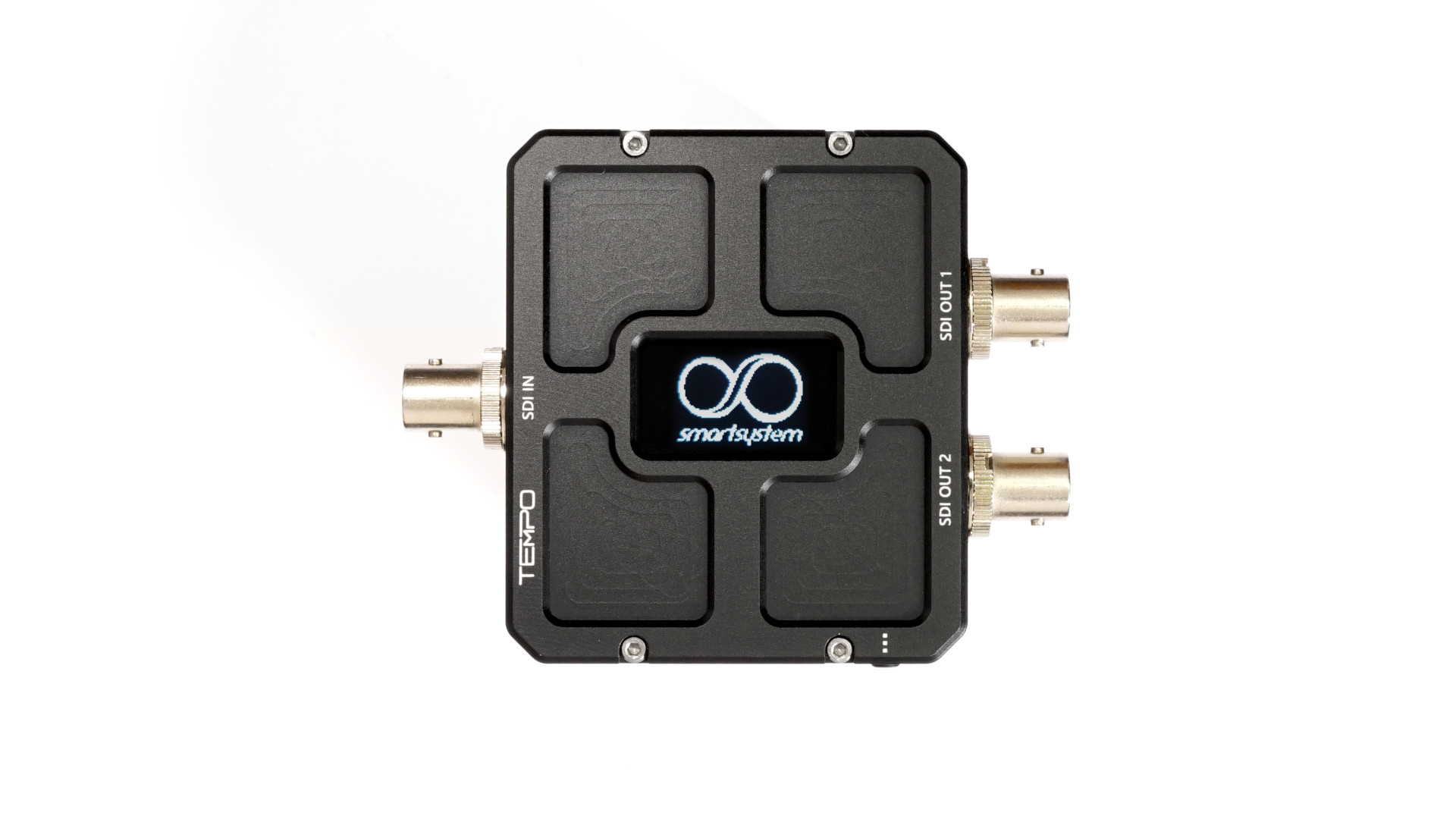

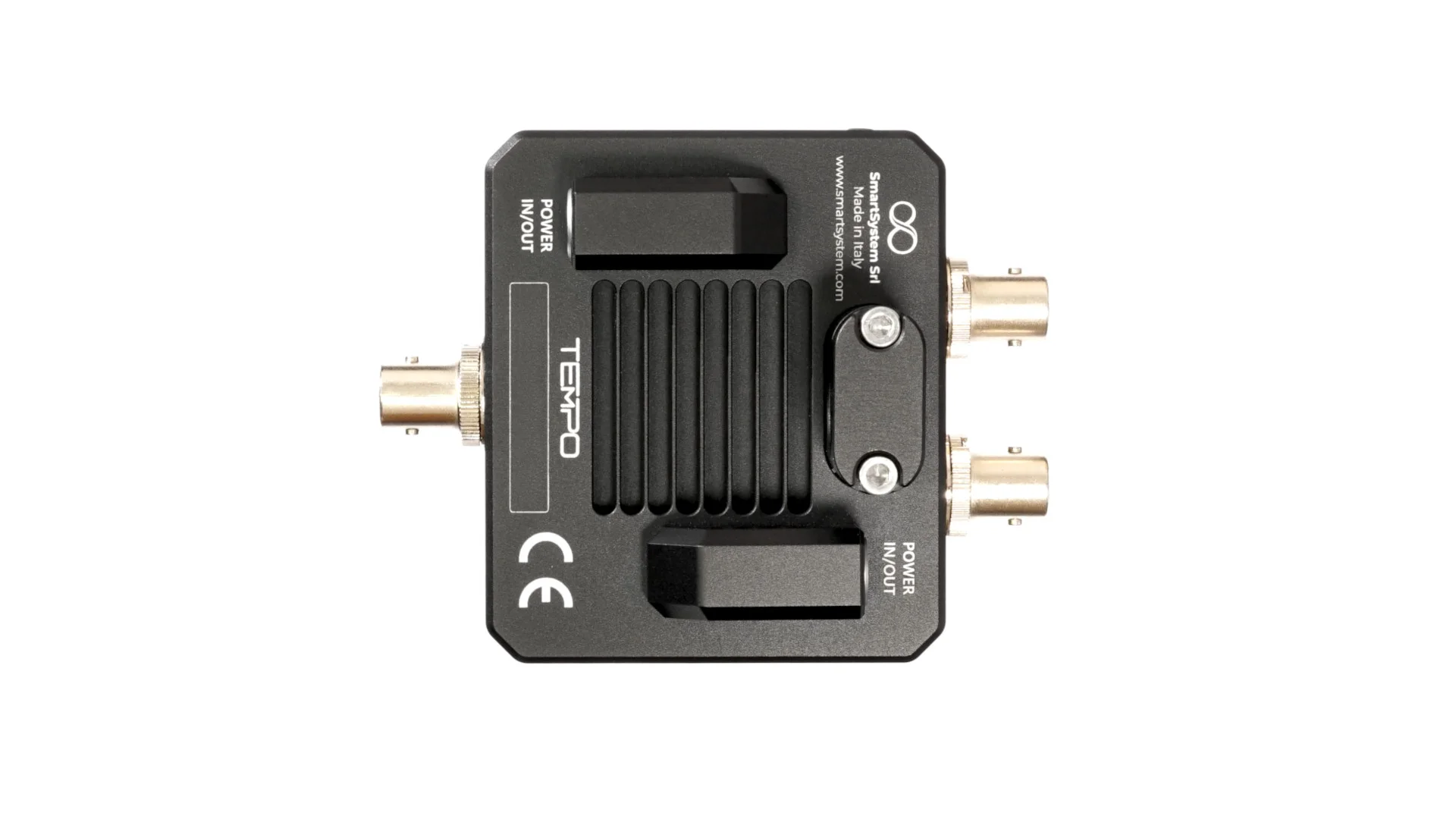

compatible with input signals up to Ruggedized SDI Splitter and Reclocker 12G

1 Input -> 2 Outputs fully bufferized and reclocked Case fully milled from solid aluminum
for ruggedized operation High contrast Graphic OLED Display
for signal information and
diagnostic data

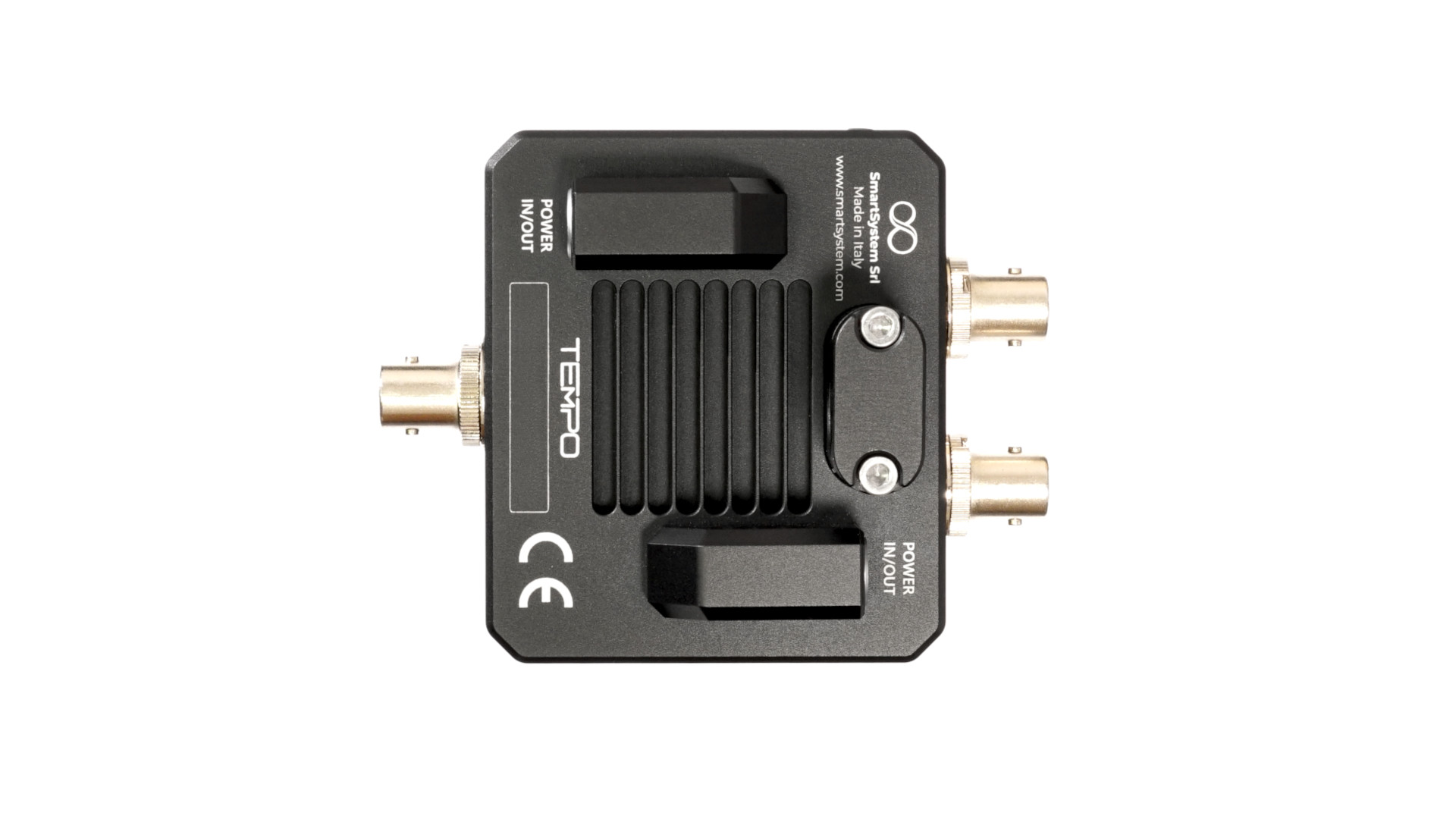

Integrated heat-sink
for efficient thermal cooling 2 power connections
for daisy chain operation 15mm / 0.59" rods attachment
for quick and safe connection

Which is the polarity?
Which standard will follow this product?
Will my cable work on this? Tempo solves this dilemma thanks to its polarity agnostic design granting to you to work flawlessly with both standard When you face a 2 pin connector, the immediate questions are:

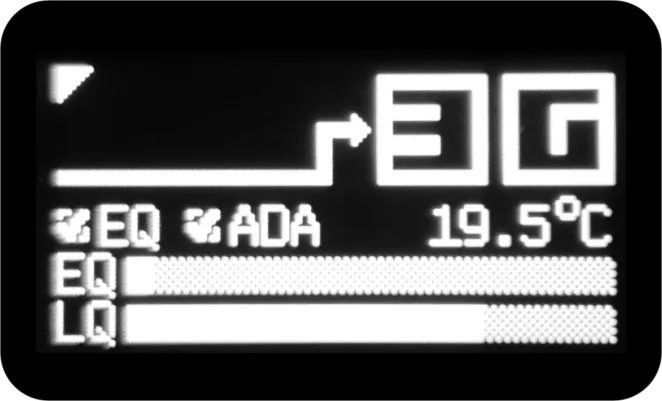

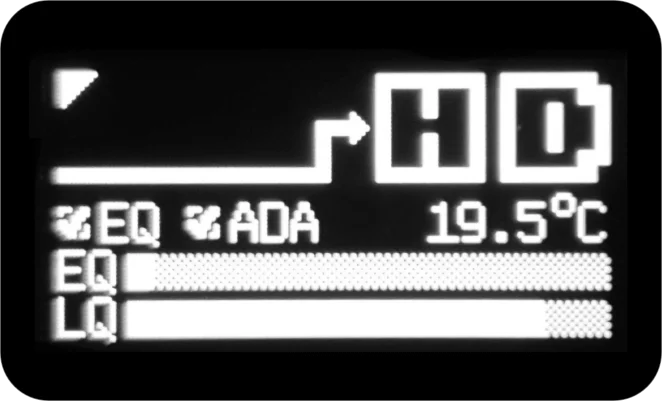

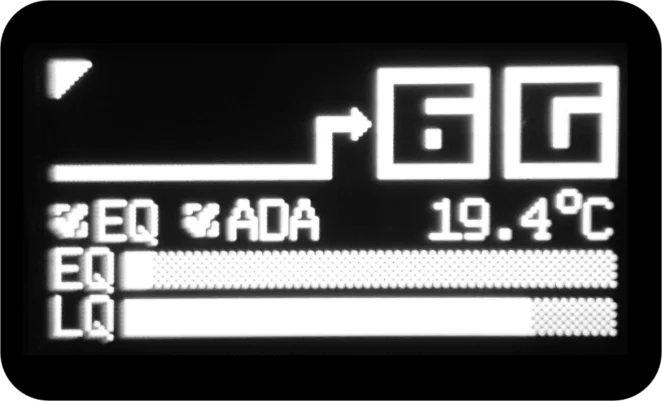

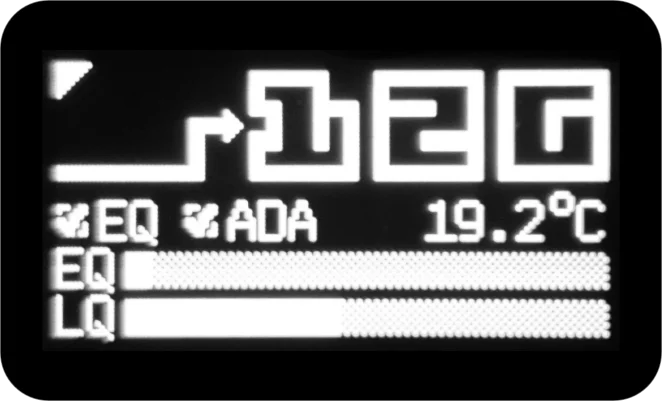

  • Link Quality
    •
  • Equalization amount
    •
  • Temperature monitoring
    •
  • Signal type
    •  All the signal information at a glance ...

    with the ability to show the on the fly the Eye-Pattern to diagnose video problems on the field

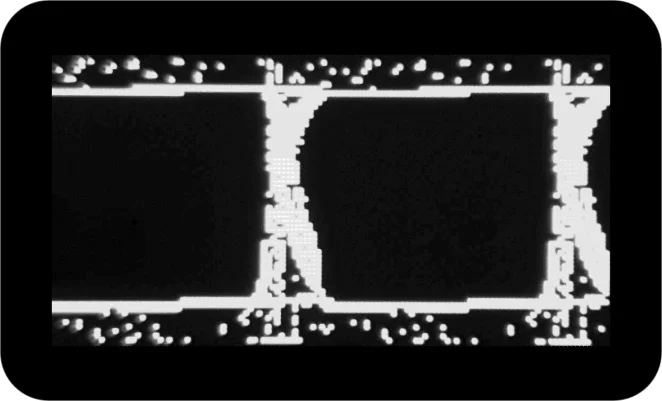

  • Perfect Input Signal
    •
  • Poor Input Signal
    •  ... with a look at technical side

    63mm / 2.48" 31.5mm / 1.24" (Only on Extended Voltage Range Version)*** *** Refer to user manual to check if your product is or not capable of being connected to 34v power supply Dimensions 15.0mm / 0.59" DC Voltage Range
    10VDC - 17/34VDC     91mm / 3.58" 73mm / 2.87" Additional Technical Specifications 40mm / 1.58" Weight
    0.168g / 0.37lbs     Power Consumption
    <= 5W     Working Temperature
    -10°C～+45°C     Working humidity
    10%～80%

    Thanks to the integrated USB port,
    complicated firmware upgrades are something
    of the past with SmartSystem Burner

    Compatible with

    SmartCAM Tempo

    € 573.34

    EURO Price includes local VAT for European customers without a valid VAT number.
    Foreign currencies are already tax-free. Customs fees not included.

    SKU: 000009276
    EAN: 8051411192657

    Ruggedized 12G SDI Splitter with two reclocked output
    Upgraded version with Extended Voltage input Capabilities (10VD  – 17/34VDC)
    OLED Display with INPUT signal information and Diagnostic SDI Eye pattern
    Polarity agnostic input / output
    15mm rods attachment included
    USB Firmware upgradable

    In the box

    • 1x SmartCAM Tempo
    • 1x 2.5 hex key

    Please Note: The  product does not include a power supply. USB is only for firmware upgrade and not for powering.
