Stabilizers

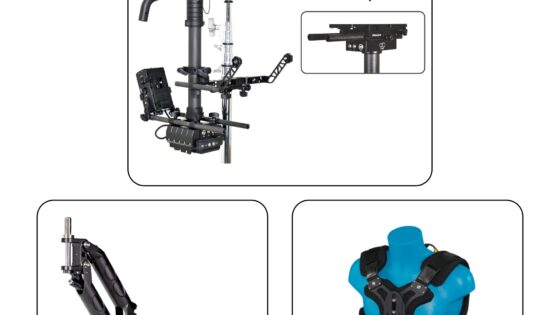

The CHIMERA-V version is the ultimate tool for Cinema cameras.The perfect fusion between all the specs of Matrix Sled EXTREME, the new VersaHead topstage and the technology offered by Volt™ system from STEADICAM™As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included. Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility. The Innovative Battery management based on Double Vlock or 3Studs Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots. A 1.575" / 40mm Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights.Hard Case includedAvailable with VLock or 3Studs battery mountIMPORTANT NOTE: this SmartSystem product include genuine STEADICAM® components as add-on and the price of this product is strictly linked to the variability of the price of the included components. For this reason, it is considered SPECIAL ORDER. The products can be superficially scratched even before being delivered to the SmartSystem. Even if we try to guarantee the best not only technical but also aesthetic, this problem is beyond our control. We are unable to foresee the brand or type of bearings used for the specific unit we will receive from STEADICAM®.  At the same time, we can't force or suggest a specific combination as custom request.From August 1, 2024, a significant increase in prices of STEADICAM® components has influenced the new price list of all related product.

MATRIX SLED turns Static Balancing and Dynamic Balancing a child's play.The EXTREME version is perfect for Cinema cameras, even the heavier ones thanks to additional counterbalance weights included Ultra fluid Gimbal, Micrometric non floating head backlash compensated. Monitor LCD holder on separate rods for maximum stiffness and flexibility.Versahead Topstage:  It ensures accessories remain perfectly centered during camera adjustments, integrates seamlessly with various sleds, and adapts to future accessories with its adjustable plate mechanism. Experience superior stability and flexibility for professional filming.Innovative Battery management based on Double Vlock or 3Studs Batteries slots for +12V or 24V operation with an extra C-Battery Slots. 1.575" / 40mm Carbon fiber Telescopic center post for a total weight of 5.5kgs without counterbalance weights.Hard Case includedAvailable with VLock or 3Studs battery mount

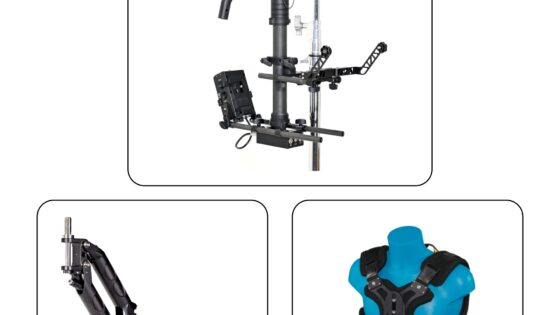

The FUSION version is perfect for Cinema cameras, even the heavier ones thanks to additional counterbalance weights included and the counterweight plate that can be mounted between the topstage and central post. In this way, even smaller cameras can obtain a good balancing mass. Ultra fluid Gimbal, Micrometric non floating head backlash compensated. Monitor LCD holder on separate rods for maximum stiffness and flexibility.Innovative Battery management based on Double Vlock Batteries slots for +12V or 24V operation. 40mm Carbon fiber Telescopic center post for a total weight of 5.5kgs without counterbalance weights.Hard Case included

MATRIX SLED turns Static Balancing and Dynamic Balancing extremely easy.The PRO version is perfect for ENG cameras, even the heavier ones thanks to additional counterbalance weights included Equipped with Cinema grade sled functionalities like Ultra fluid Gimbal or Micrometric non floating head.Monitor LCD holder for maximum stiffness, double Vlock or 3Studs Batteries slots for endurance with and extra C-Battery Slots. 1.575"/40mm Carbon fiber Telescopic center post for a total weight of 4.7kgs without counterbalance weights.Hard Case included

Professional Sled with 40mm Telescopic Post designed to work with DJI™ Ronin™2 thanks to the Ronin2 Plate adapter included in the bundle No external cable needed to power Ronin2. Forget the umbilical cable era The standard Ronin™2 Battery can be attached as regular batteries with the ability to move fore-aft on carbon fiber rods and to tilt +90° -90° for perfect Balance Horizon Monitor system included in the bundle The topstage can be assembled directly on the lower part of the sled to grant ultra precision balancing with the Standard VLock or 3Studs battery plate included in the bundleIn the bundle:

• 1x Matrix R2 Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
• 1x Micrometric head able to be fixed on the upper part as on lower part of the sled
• 1x Ronin™2 Plate Adapter for Matrix Sled
• 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
• 1x Ronin™2 Yaw Locker
• 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
• 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
• SmartCAM Horizon system with separate hard case
• 1x Standard monitor holder as fixed replacement of SmartCAM Horizon
• 1x Hard Case

Please Note : DJI Ronin2 not included in this bundle

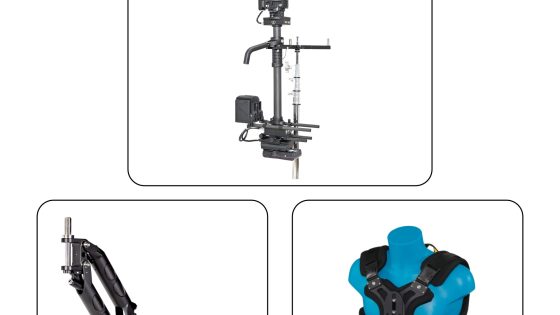

Professional Sled with 40mm Telescopic Post designed to work with DJI™ Ronin™2 thanks to the Ronin2 Plate adapter included in the bundle No external cable needed to power Ronin2. Forget the umbilical cable era The standard Ronin™2 Battery can be attached as regular batteries with the ability to move fore-aft on carbon fiber rods and to tilt +90° -90° for perfect Balance The topstage can be assembled on the lower part of the sled to grant ultra precision balancing with the Standard VLock or 3Studs battery plate included on the bundle An additional U-bracket and a specific plate to increase mass in the lower part help you in finding the right setup.In the bundle:

• 1x Matrix R2 Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
• 1x Micrometric topstage able to be fixed on the upper part as on lower part of the sled
• 1x Ronin™2 Plate Adapter for Matrix Sled
• 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
• 1x Ronin™2 Yaw Locker
• 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
• 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
• 1x LCD monitor holder for standard use
• 1x R2 Counterweight plate with 10x Counterweights to help balancing heaviest setup when used with or without Ronin™2
• 1x U-Bracket in order to increase the distance of the sled from the arm and giving the possibility to use your preferred monitor on the sled handle
• 1x Hard Case

Plase Note : DJI Ronin2 not included in this bundle as well as monitor holder for the sled handle

The Ultra Bundle is a real catch-all solution : All the features of the Matrix Sled Extreme bundled with all the stuff that let you mount your Ronin™2 transforming it in the R2 Sled.In the bundle:

• 1x Micrometric TopStage Vibration free able to be fixed on the upper part as on lower part of the sled
• 1x Matrix Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
• 1x LCD monitor holder on separate carbon fiber rods
• 1x Exclusive Battery management based on Double Vlock or 3Studs Batteries slots for +12V and +12/+24V operation
• 1x C-Battery with 10x Counterweights to help you balancing heavy setup without increasing too much the sled lenght
• 1x Ronin™2 Plate Adapter for Matrix Sled
• 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
• 1x Ronin™2 Yaw Locker
• 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
• 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
• 1x SmartCAM Horizon with separate Hard case
• 1x Sled Hard Case

Plase Note : DJI Ronin2 not included in this bundle

The Ultra Lite Bundle is another catch-all solution as the Matrix Sled Ultra but based on Matrix Sled Extreme bundled with R2 lite Sled.In the bundle:

• 1x Micrometric TopStage Vibration free able to be fixed on the upper part as on lower part of the sled
• 1x Matrix Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
• 1x LCD monitor holder on separate carbon fiber rods
• 1x Exclusive Battery management based on Double Vlock or 3Studs Batteries slots for +12V and +12/+24V operation
• 1x C-Battery Vlock or 3 Studs with 10x Counterweights to help you balancing heavy setup without increasing too much the sled lenght
• 1x Ronin™2 Plate Adapter for Matrix Sled
• 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
• 1x Ronin™2 Yaw Locker
• 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
• 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
• 1x R2 Counterweight plate with 10x Counterweights to help balancing heaviest setup when used with or without Ronin™2
• 1x U-Bracket in order to increase the distance of the sled from the arm and giving the possibility to use your preferred monitor on the sled handle
• 1x Sled Hard Case
